Rubric:
Category:
Number of min. release of goods:
1
Publication date:
01.07.2024

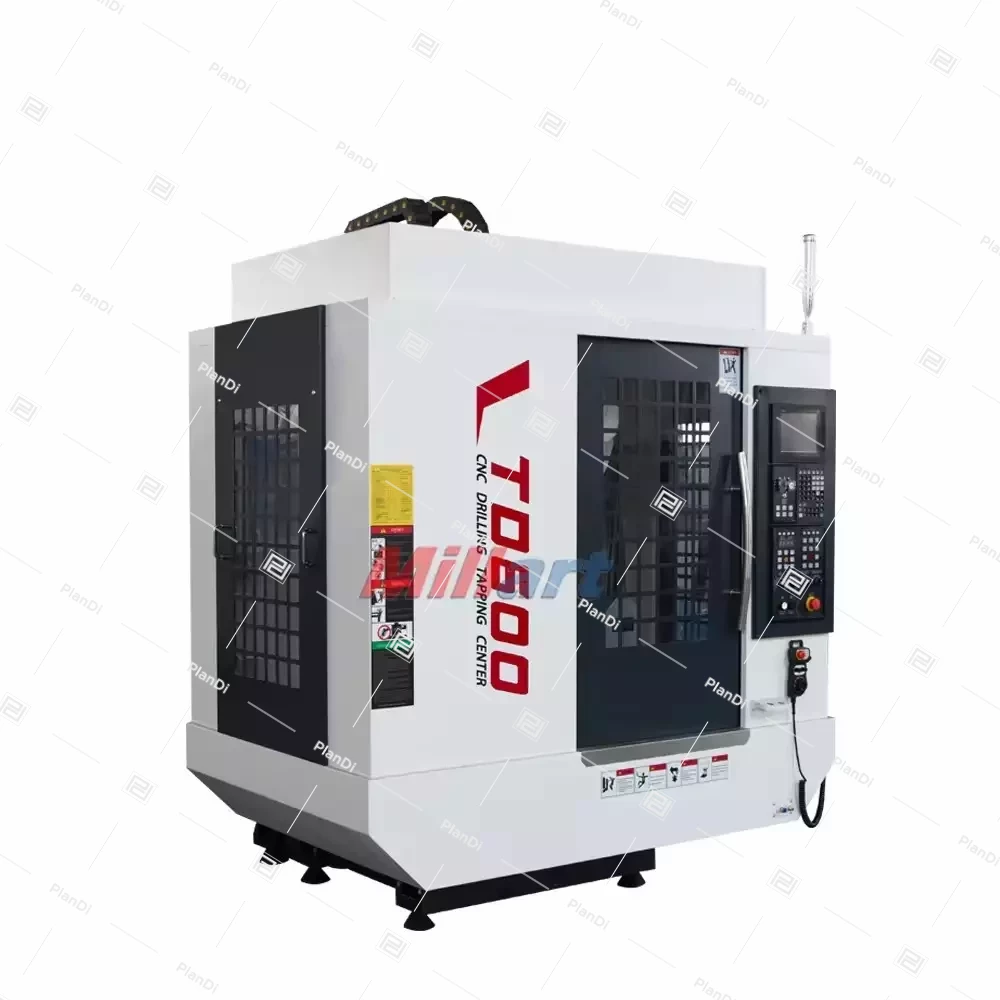

Model Unit TD-600 TD-700 Desktop size mm 700x420 800x420 X-axis movement mm 600 700 Move along the Y axis mm 400 400 Z-axis movement mm 330 330 T-slot work table 3*14*12 0 3*14*120 Load capacity of the work table kg 200 250 Distance from spindle nose to table mm 1 50-480 150-480 Distance from spindle center to column mm 464 464 Spindle cone BT30 BT30 Max. Spindle Speed rpm 20000 20000 Magazine capacity PKS 21 21 Maximum tool diameter mm 80 80 Max. tool length mm 250 250 Max. tool weight kg 3 3 Tool change time (TT) sec 1 6 1 3 Main engine power kW 5.5 5.5 Servo motor power in X/Y/Z axes kW 1.5/1.5/3.0 1.5/1.5/3.0 Cutting feed rate mm/min 5-20000 5-20000 Rapid movement speed along the X,Y,Z axes m/min 48/48/48 48/48/48 Positioning accuracy mm ±0.005/300 ±0.005/300 Repeat positioning accuracy mm ±0.003/300 ±0.003/300 Ball lead screw mm XY:28*16 Z:32*16 XY:32*16 Z:28*16 Linear guide mm 30/30/30 30/30/30 Energy requirement KVA 20 20
Standard accessories:
Mitsubishi M80 controller
21 Magazine with Hand Clip from Taiwan
Linear guide from Taiwan
Ball screw from Taiwan
Taiwan high speed direct drive spindle
Bearings from SKF
Fully closed lid
Work lamp
Three-color signal lamp
Lubrication system
Cooling system
Air Gun + Water Gun
miles per gallon
| Model | Unit | TD-600 | TD-700 |
| Desktop size | mm | 700x420 | 800x420 |
| X-axis movement | mm | 600 | 700 |
| Move along the Y axis | mm | 400 | 400 |
| Z-axis movement | mm | 330 | 330 |
| T-slot work table | 3*14*12 0 | 3*14*120 | |
| Load capacity of the work table | kg | 200 | 250 |
| Distance from spindle nose to table | mm | 1 50-480 | 150-480 |
| Distance from spindle center to column | mm | 464 | 464 |
| Spindle cone | BT30 | BT30 | |
| Max. Spindle Speed | rpm | 20000 | 20000 |
| Magazine capacity | PKS | 21 | 21 |
| Maximum tool diameter | mm | 80 | 80 |
| Max. tool length | mm | 250 | 250 |
| Max. tool weight | kg | 3 | 3 |
| Tool change time (TT) | sec | 1 6 | 1 3 |
| Main engine power | kW | 5.5 | 5.5 |
| Servo motor power in X/Y/Z axes | kW | 1.5/1.5/3.0 | 1.5/1.5/3.0 |
| Cutting feed rate | mm/min | 5-20000 | 5-20000 |
| Rapid movement speed along the X,Y,Z axes | m/min | 48/48/48 | 48/48/48 |
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 |
| Repeat positioning accuracy | mm | ±0.003/300 | ±0.003/300 |
| Ball lead screw | mm | XY:28*16 Z:32*16 | XY:32*16 Z:28*16 |
| Linear guide | mm | 30/30/30 | 30/30/30 |
| Energy requirement | KVA | 20 | 20 |
Standard accessories:
Mitsubishi M80 controller
21 Magazine with Hand Clip from Taiwan
Linear guide from Taiwan
Ball screw from Taiwan
Taiwan high speed direct drive spindle
Bearings from SKF
Fully closed lid
Work lamp
Three-color signal lamp
Lubrication system
Cooling system
Air Gun + Water Gun
