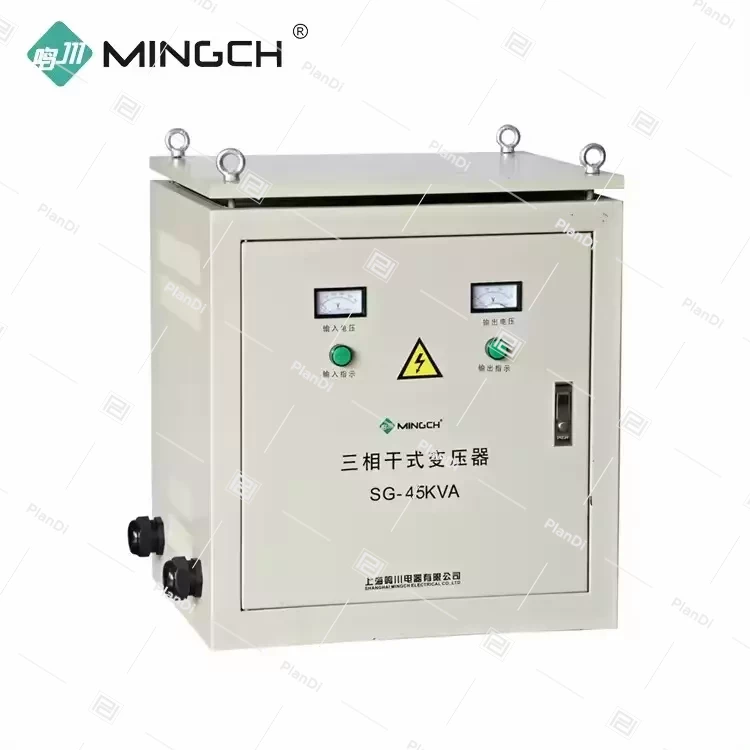

DG/SG shell transformer, using high-quality materials and advanced technology, specializing in the production of 1kVA-1000kVA three-phase transformers, Siemens products with reference to similar products. The latest research and development of special imported equipment or isolation transformer connection. The product meets international and national standards VDE0550, it, JB5555, GB5226.
This series is widely used in AC 50, 60Hz power grid, with input and output power voltage less than 1000V. All kinds of input and output signals, voltage levels, connection groups, tap position adjustment, winding power distribution, secondary winding, the need for housing, etc. are made according to the user's requirements for careful design and production.
Model Output power Output current Size Weight (KVA) (A) (L×W×H) cm (Kg) SG-1 1 1.5 21×28×28 10 SG-2 2 3 25×33×32 15 SG-3 3 4.5 30×36×35 25 SG-5 5 8 33×40×38 35 SG-8 8 12 35×46×43 60 SG-10 10 15 36×57×57 80 SG-15 15 23 37×63×63 120 SG-20 20 30 39×67×67 150 SG-30 30 46 40×80×87 190 SG-40 40 61 40×80×87 230 SG-50 50 76 50×85×85 280 SG-60 60 91 50×85×85 330 SG-80 80 121 50×85×85 400 SG-100 100 152 55×100×100 450 SG-120 120 182 60×100×100 500 SG-150 150 227 60×110×110 650 SG-200 200 303 60×110×110 850 SG-250 250 378 70×130×130 1000 SG-300 300 455 70×130×130 1300 SG-350 350 530 70×130×130 1500 SG-400 400 606 70×130×130 1700 SG-500 500 758 80×150×150 2000 SG-600 600 909 80×150×150 2400
DG/SG shell transformer, using high-quality materials and advanced technology, specializing in the production of 1kVA-1000kVA three-phase transformers, Siemens products with reference to similar products. The latest research and development of special imported equipment or isolation transformer connection. The product meets international and national standards VDE0550, it, JB5555, GB5226.
This series is widely used in AC 50, 60Hz power grid, with input and output power voltage less than 1000V. All kinds of input and output signals, voltage levels, connection groups, tap position adjustment, winding power distribution, secondary winding, the need for housing, etc. are made according to the user's requirements for careful design and production.
| Model | Output power | Output current | Size | Weight |
| (KVA) | (A) | (L×W×H) cm | (Kg) | |
| SG-1 | 1 | 1.5 | 21×28×28 | 10 |
| SG-2 | 2 | 3 | 25×33×32 | 15 |
| SG-3 | 3 | 4.5 | 30×36×35 | 25 |
| SG-5 | 5 | 8 | 33×40×38 | 35 |
| SG-8 | 8 | 12 | 35×46×43 | 60 |
| SG-10 | 10 | 15 | 36×57×57 | 80 |
| SG-15 | 15 | 23 | 37×63×63 | 120 |
| SG-20 | 20 | 30 | 39×67×67 | 150 |
| SG-30 | 30 | 46 | 40×80×87 | 190 |
| SG-40 | 40 | 61 | 40×80×87 | 230 |
| SG-50 | 50 | 76 | 50×85×85 | 280 |
| SG-60 | 60 | 91 | 50×85×85 | 330 |
| SG-80 | 80 | 121 | 50×85×85 | 400 |
| SG-100 | 100 | 152 | 55×100×100 | 450 |
| SG-120 | 120 | 182 | 60×100×100 | 500 |
| SG-150 | 150 | 227 | 60×110×110 | 650 |
| SG-200 | 200 | 303 | 60×110×110 | 850 |
| SG-250 | 250 | 378 | 70×130×130 | 1000 |
| SG-300 | 300 | 455 | 70×130×130 | 1300 |
| SG-350 | 350 | 530 | 70×130×130 | 1500 |
| SG-400 | 400 | 606 | 70×130×130 | 1700 |
| SG-500 | 500 | 758 | 80×150×150 | 2000 |
| SG-600 | 600 | 909 | 80×150×150 | 2400 |
